| Model |
Specification (mm) |
Feeding Inlet Size (mm) |
Feed Size (mm) |
Production Capacity (t/h) |
Power (kw) |
Gross Weight (t) |
Overall Size (mm) |
| 1007 |
Φ1000*700 |
400*730 |
300 |
30-70 |
45 |
12 |
2330*1660*2300 |
| 1010 |
Φ1000*1050 |
400*1080 |
350 |
50-90 |
55 |
15 |
2370*1700*2390 |
| 1210 |
Φ1250*1050 |
400*1080 |
350 |
70-130 |
110 |
17.7 |
2680*2160*2800 |
| 1214 |
Φ1250*1400 |
400*1430 |
350 |
100-180 |
132 |
22.4 |
2650*2460*2800 |
| 1315 |
Φ1320*1500 |
860*1520 |
500 |
130-250 |
200 |
27 |
3180*2720*3120 |
| 1320 |
Φ1320*2000 |
860*2030 |
500 |
160-350 |
250 |
30 |
3200*3100*3120 |
| 1520 |
Φ1500*2000 |
990*2030 |
700 |
200-550 |
315 |
50 |
3960*3560*3330 |
| 1820 |
Φ1800*2000 |
1260*2030 |
800 |
400-800 |
630 |
83 |
4400*3860*4010 |
.png)
* For more product models, please contact customer service
Clarify needs
Please contact us before purchase to confirm the specifications and materials you need, it is more convenient for us to provide you with more suitable and economical applicable equipment.
Created exclusively for your needs
The final machine price may vary depending on your's specific requirements, please consult our sales representatives for detailed machine quotations.
Order consultation
.png)
Warmly welcome new and old customers to purchase and consult. The material, technical requirements and correct and reasonable installation and use of the product you need will greatly increase the service life of the machine, provide suggestions within our capacity, and answer any business and technical issues for your problem.

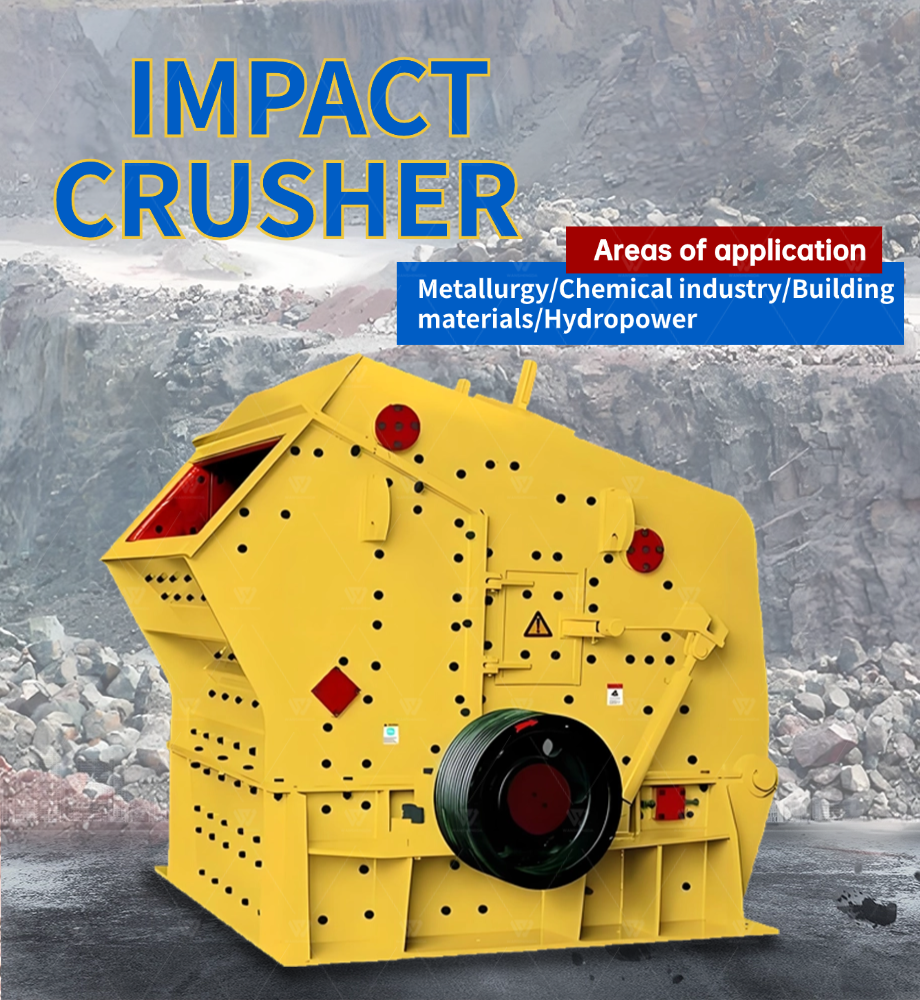

What Is The Working Principle Of The Impact Crusher?

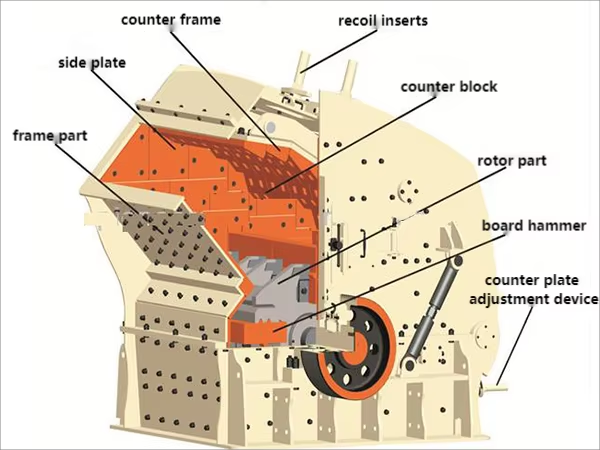

Impact crusher is a kind of stone crusher using impact energy. After turn on,the motor drives the rotor rotate at a high speed .When the material get into the blow bar working area,they will be stroke by the blow bar and thrown to the impact devices around the rotor.The material will come out from the discharge hole until they are crushed to the required size. The clearance between the impact rack and the rotor can adjust the size and shape of the end product.
