Sawdust Crusher

{{ product.min_price_format }} ~ {{ product.max_price_format }}
Quantity:
SKU:{{ product.sku }}
Model: {{ product.model }}

{{ variable.name }}

{{ value.name }}

Product Introduction

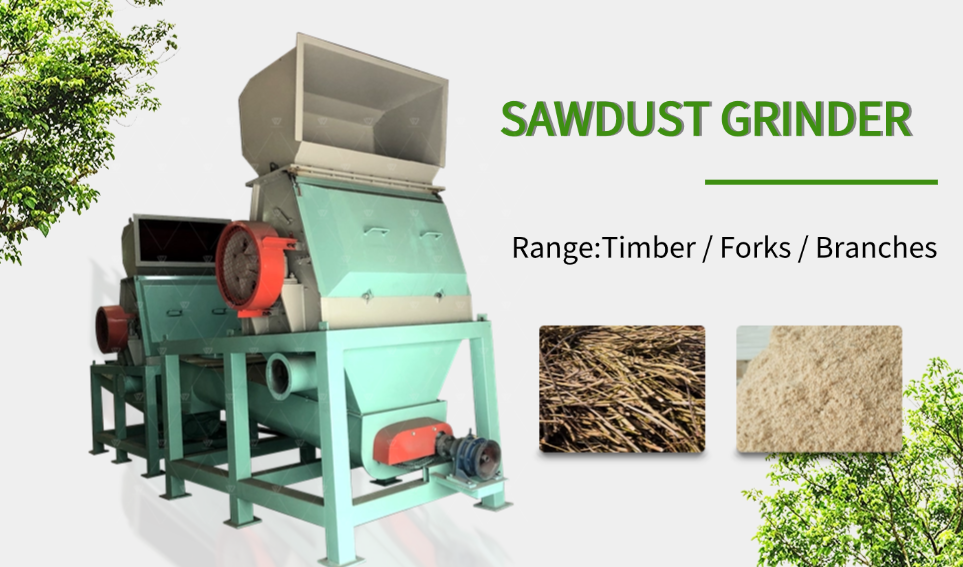

Sawdust crusher is a device that crushes wood into sawdust. It is the front-end production equipment of wood powder and can process wood, twigs, branches and other raw materials into wood chips and sawdust at one time.

Sawdust crusher is particularly suitable for processing wood chips in edible fungus culture medium, and is mainly composed of a chipping device, a crushing device and a fan.

When the sawdust crusher is working, the material can be fully and finely crushed in the crushing chamber. It has the characteristics of high output, low energy consumption, high efficiency, and uniform discharging. When using this equipment, it also has the advantages of low noise, low pollution, simple operation and convenient maintenance.

Working principle:

The sawdust crusher adopts the impact crushing method, using the relative movement of the internal high-speed moving hammer and the surrounding fixed gear ring to make the material collide and rub against the hammer teeth and impact each other to be crushed. The crushed material is subjected to the centrifugal force of rotation and is sent to the discharge port after being screened through the sieve holes under the action of the fan for centralized processing and loading and transportation.

Technical parameters:

Model Feed size (mm) Discharge port size (mm) Number of blades (pieces) Output (t/h) Crushing size (mm) Main motor power (kw) Discharge motor power (kv) Loading motor power (kw) Dust removal motor power (kw) Length width and height (m) Weight (t)
WSD-1500 1500*450 273 66 5-8 3-30 2-55*2 4level-7.5 4level-4 2.2 3.15*3.25*3.35 5.5

Features of sawdust crusher:

1. Low energy consumption, low cost, reasonable structure. All parts of the crusher adopt wear-resistant protection measures to extend the service life.

2. The sawdust crusher adopts alloy cutters, which are wear-resistant and sharp, extending the service life of the equipment. The crushing chamber adopts multi-stage crushing and fine crushing principle device, with large working impact, high production efficiency and strong fine crushing ability.

The complete set of sawdust crusher equipment includes a main machine and a fan. It has a simple structure, compact layout, low price, stable operation, low energy consumption, high output, good quality of finished wood chips, and low processing cost.
