Product introduction

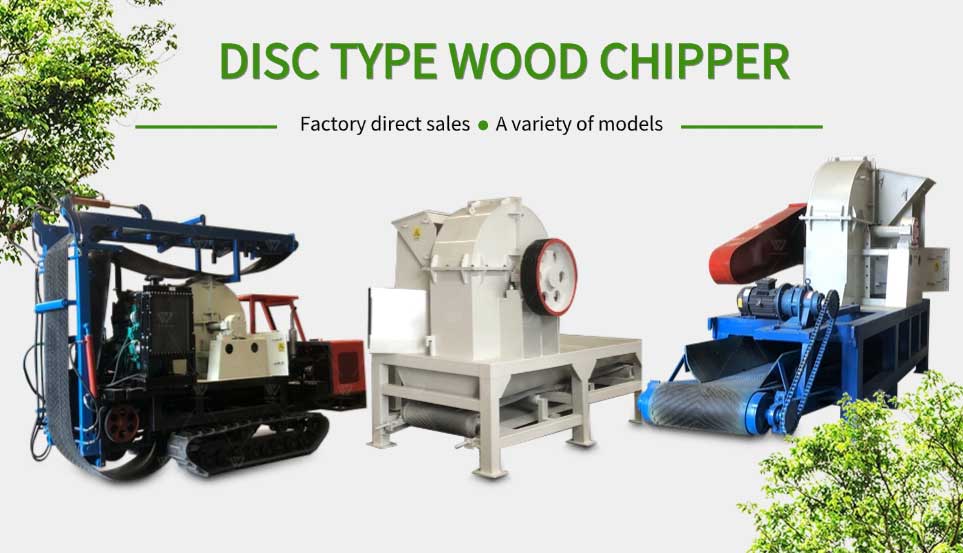

Disc Wood Crusher is a special equipment for producing wood chips. The comprehensive chipper is also called wood slicer, which belongs to a series of wood processing equipment. The main cutting materials of this machine are small-diameter wood, bamboo, board skin material and leftovers of felled firewood after debarking. The comprehensive chipper has a compact structure, reasonable layout, easy installation, convenient operation and maintenance, and high production capacity. When cutting logs, the quality of wood chips is high, and the length of wood chips can be freely adjusted within the specified range.
The comprehensive chipper is a new type of chipper produced by our company, which is suitable for industries such as particleboard, medium density fiberboard, wood fiberboard, papermaking, power plants, boilers, etc. This product has a compact structure, high quality of chipping materials, wide adaptability of raw materials, and easy operation and maintenance.
Reference video:
The main raw materials for the comprehensive chipper are small-diameter wood, wood felling and processing residues (such as branches, twigs, board skin, lath, log core, waste veneer, waste wood, etc.), and can also be used to cut non-wood raw materials (such as sugar cane, reeds, bamboo, etc.). After cutting, the raw materials become small wood chips of relatively large specifications, which can be used as raw materials for particleboard, medium-density fiberboard, fiberboard and other papermaking industries, and can also be used as fuel. It has a wide range of applications, diversified raw materials, good quality of wood chips, reliable performance, simple and convenient operation, and high production efficiency.
When the integrated chipper is working, the motor drives the rotor to rotate at high speed, and the wood evenly enters the integrated crusher cavity. The high-speed rotating hammer head impacts, shears and tears the wood to crush it. At the same time, the gravity of the wood itself causes the wood to rush from the high-speed rotating hammer head to the baffle and screen bars in the frame. At the bottom of the rotor, there is a screen plate. The particles smaller than the size of the screen hole in the crushed wood are discharged through the screen plate, and the wood larger than the size of the screen hole is retained on the screen plate and continues to be hit and ground by the hammer.
Drum chipper has a wide range of applications, diversified raw materials, good quality of wood chips, stable and reliable, simple and convenient operation, and high production efficiency. A secondary conveyor belt is set at the output end of the main material conveyor belt, which can transport the cut wood chips to a farther or higher position, making it an ideal choice for the majority of users.
Model | Feed size (mm) | Motor power (kw) | Feed power (kw) | Discharge power (kw) | Speed (r/min) | Production efficiency (t/h) | Dimensions (mm) |
WSD-1000 | 1000*400 | 110 | 5.5*2 | 3 | 510 | 15-20 | 6000*2150*1750 |
WSD-1300 | 1300*400 | 132 | 7.5*2 | 3 | 510 | 20-25 | 6000*2350*1750 |
WSD-1500 | 1500*400 | 160 | 11*2 | 4 | 365 | 25-35 | 6000*2950*1950 |
WSD-1600 | 1600*400 | 200 | 15*2 | 4 | 365 | 35-45 | 6000*2950*1950 |
