Product Introduction

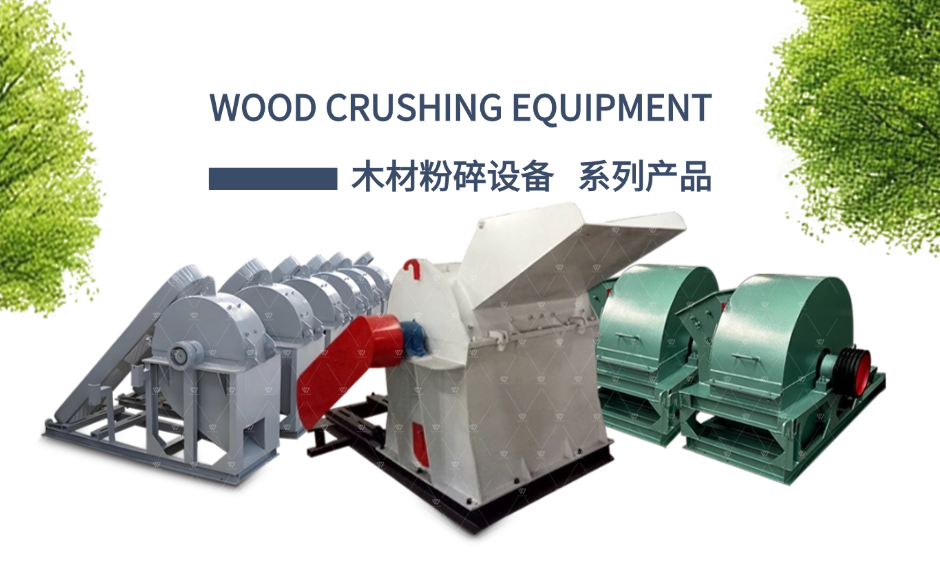

Wood chip crusher is a wood crushing equipment that has been designed and produced for many years according to the needs of industrial production. Due to its reasonable design, compact structure, stability, durability and high production efficiency, it has been promoted and used with good results. The power of the equipment can be divided into motor drive or diesel engine drive, and the installation can be divided into fixed or mobile types. The wood chip crusher equipment can be selected according to the needs. The wood chip crusher has stable working performance, low energy consumption, high output, good quality of wood chip products, and low processing cost. It is an ideal wood crushing equipment.

Working principle

The wood chip crusher integrates the dual crushing functions of blade cutting and high-speed airflow impact and collision, and can also complete the fine material sorting process at the same time. During the blade cutting and crushing process, the rotor generates high-speed airflow, which rotates in the direction of the blade cutting. The material is accelerated in the airflow, and the repeated impact causes the material to be double-crushed at the same time, accelerating the material crushing rate.

Wood chip crusher can crush all kinds of waste wood, waste wood, board scraps, etc. into sawdust and granular finished products, so the machine is also called wood chip machine, sawdust machine, wood chip crusher, wood chip pellet machine, etc. The wood chip crusher produced by our company is equipped with a fineness analyzer and is a new type of wood crushing processing equipment for difficult crushing of wood materials, fiber materials, brittle materials, tough materials, etc.

The whole machine of wood chip crusher consists of main machine, fan, analyzer, powder collector, dust collector, etc. Each component has compact structure and reasonable layout, and its outstanding features are convenient operation, good sealing and low noise.

The sawdust crusher is particularly suitable for processing sawdust in edible fungus culture medium. It is mainly composed of a chipping device, a crushing device and a fan. The sawdust particles of wood after being cut by the chipping device are small and do not need to be dried. They can be sent to the crushing device for further crushing. The crushed sawdust products are sent to the gathering place by the fan.

Wood chip crusher can process pine, miscellaneous wood, poplar wood, fir, and raw bamboo. Due to its compact structure, small footprint, good chipping quality, low power consumption, and suitability for mobile operations, it is widely used in the material preparation section of small and medium-sized particleboard and fiberboard production enterprises, and can also be used by individual households to produce commercial wood chips.

Technical parameters

Model power  (kw) output  (kg/h) number of  chipping  knives (pieces) number of  crushing  knives (pieces) blade length  (mm) oblique feed  port diameter (mm) spindle speed (r/min) weight  (kg) size (cm)
WSD-500 15 200-300 12 4 120 150*160 1400 300 120*70*73
WSD-600 18.5-22 300-1000 32 3 200 160*180 1400 800 130*98*73
WSD-800 37-45 1000-2000 42 4 240 200*220 1200 1400 200*100*130
WSD-1000 55-75 2000-3000 52 4 340 300*320 1000 2200 230*175*230
WSD-1200 75-90 3000-4000 62 4-6 380 350*400 1000 3200 260*200*240

Wood chip crusher can crush all kinds of waste wood, waste wood, board scraps, etc. into sawdust and granular finished products, so the machine is also called wood chip machine, sawdust machine, wood chip crusher, wood chip pellet machine, etc. The wood chip crusher produced by our company is equipped with a fineness analyzer and is a new type of wood crushing processing equipment for difficult crushing of wood materials, fiber materials, brittle materials, tough materials, etc.
