The metal hydraulic baler can extrude all kinds of metal scrap materials (steel shavings, scrap steel, scrap aluminum, scrap stainless steel and scrapped automobile scrap, etc.) into qualified charges of various shapes such as cuboids, octagonal bodies, cylinders, etc. It can not only reduce transportation and smelting costs, but also increase the furnace speed.
.png)

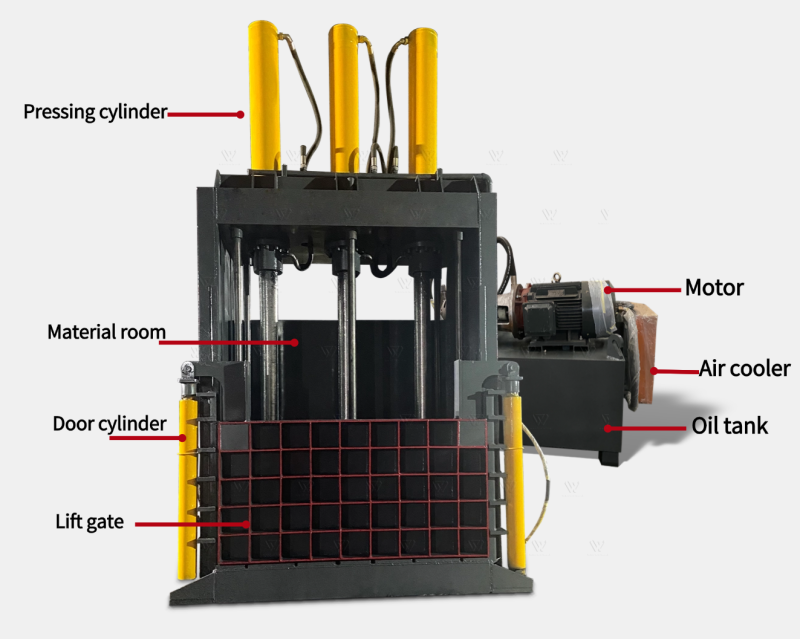

The machine adopts hydraulic transmission, compact structure, easy to transfer, simple operation, easy maintenance, reliable sealing, and no foot screws are used for installation. The user can customize the specifications and size of the briquetting according to the needs to cooperate with the transportation or storage to the greatest extent, which is a good equipment to improve labor efficiency, reduce labor intensity, save manpower and reduce transportation costs.
.png)
This series of balers is mainly used in steel mills, recycling and processing industries, and non-ferrous and ferrous metal smelting industries. Applications: Waste recycling stations, recycling centers, corporate customers, steel mills, etc. Materials: Iron/Steel: Scrap Iron, Light and Thin Materials, Scrap Steel, Scrapped Automobile Shells, Scraps, Waste Oil Drums, Bicycle Racks, Lathe Scraps, Shavings, Iron Filings, Steel Filings, Color Steel Tile, Stainless Steel; Aluminum scrap: aluminum chips, aluminum shavings, aluminum profiles, doors and windows, cans, aluminum foil, aluminum alloy; Copper scrap: copper wire, copper plate, copper filings, copper shavings, copper wire..png)
| Model |
Nominal thrust（KN） |
Size of the bin（mm） |
Lump size（mm） |
Mass weight（kg） |
Motor（KW） |
Packet delivery method |
| Y81Q–100 |
1000 |
1100×500×500 |
500×200 |
30~60 |
11 |
Push forward the package |
| Y81Q–135 |
1350 |
1400×600×600 |
600×250 |
60~100 |
18.5 |
Push forward the package |
| Y81Q–160 |
1600 |
1600×800×600 |
800×300 |
100~200 |
22 |
Push forward the package |
| Y81F–100A |
1000 |
800x600x350 |
200x200 |
10-20 |
15 |
Flip bag |
| Y81F–100B |
1000 |
1000x800x400 |
200x200 |
15-30 |
15 |
Flip bag |
| Y81F–125A |
1250 |
1200×700×600 |
300×300 |
30~45 |
15 |
Flip bag |
| Y81F–125B |
1250 |
1200×800×550 |
300×300 |
50~70 |
15 |
Flip bag |
| Y81F–125C |
1250 |
1400×900×600 |
300×300 |
50~70 |
18.5 |
Flip bag |
| Y81F–160A |
1600 |
1200×800×550 |
300×300 |
60~80 |
18.5 |
Flip bag |
| Y81F–160B |
1600 |
1500×1000×600 |
400×400 |
90~120 |
22 |
Flip bag |
| Y81F–160C |
1600 |
1600×1200×800 |
400×400 |
100~150 |
18.5×2 |
Flip bag |
| Y81F–200A |
2000 |
1600×1200×800 |
400×400 |
120~160 |
22×2 |
Flip bag |
| Y81F–200B |
2000 |
1800×1400×900 |
400×400 |
100~200 |
22×2 |
Flip bag |
| Y81F–250A |
2500 |
2000×1400×800 |
450×450 |
200~400 |
22×2 |
Flip bag |
| Y81F–250B |
2500 |
2000×1750×1000 |
500×500 |
250~450 |
30×2 |
Push forward the package |
| Y81F–250C |
2500 |
2500×2000×1200 |
500×500 |
300~500 |
30×2 |
Push forward the package |
| Y81F–315A |
3150 |
2500×2000×1200 |
600×600 |
500-700 |
30×2 |
Push forward the package |
| Y81F–315B |
3150 |
3000×2500×1200 |
600×600 |
600-900 |
45×2 |
Push forward the package |
| Y81F–315C |
3150 |
3500×3000×1300 |
600×600 |
700~1000 |
45×2 |
Push forward the package |
| Y81F–400A |
4000 |
3000×2500×1200 |
700×700 |
800~1100 |
45×2 |
Push forward the package |
| Y81F–400B |
4000 |
3500×3000×1300 |
700×700 |
800~1200 |
45×3 |
Push forward the package |
| Y81F–400C |
4000 |
4000×3000×1300 |
700×700 |
900~1200 |
45×3 |
Push forward the package |
| Y81F–500A |
5000 |
3500×3000×1300 |
700×700 |
900-1400 |
45×3 |
Push forward the package |
| Y81F–500B |
5000 |
4000×3000×1300 |
700×700 |
900~1500 |
55×5 |
Push forward the package |
| Y81F–630A |
6300 |
3500x300x1300 |
700x700 |
900~1500 |
55x2 |
Push forward the package |
| Y81F–630B |
6300 |
4000×3500×1300 |
700x700 |
900~1500 |
55x3 |
Push forward the package |
| Note：The above parameters are subject to technical changes, and the weight and productivity of the bale depend on the raw material. |
.png)
1. Adopt advanced hydraulic drive (or diesel drive).
2. There are shearing blades on both sides of the door cover (easy to replace) to avoid the deformation of the material box caused by the traditional guard plate shearing.
3. The discharging form of the machine is diverse, and there are many options, which makes the work more flexible and efficient;
4. There are many options for extrusion force grades to meet the needs of different customers;
5. There is no limit to the size and model of compression, and customized design can be carried out according to customer requirements.
6. Made of high-quality national standard steel plate and advanced welding technology, the mechanical parts are durable and durable, and the service life is long.
7. Precision filter is used to reduce the phenomenon of valve body jamming. The fitting is sealed with a spin-on flared taper.
