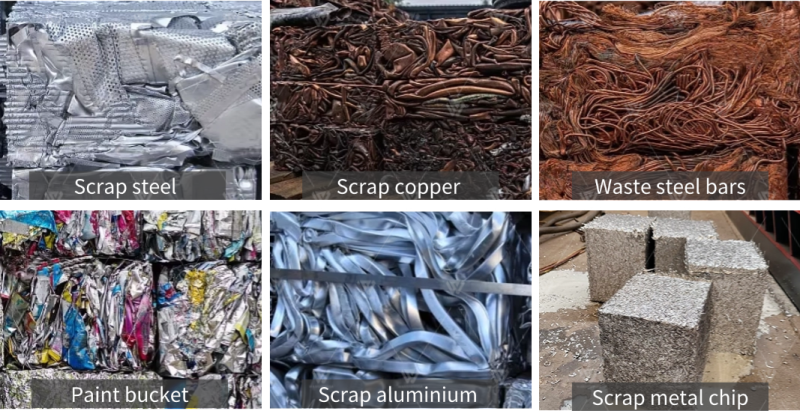

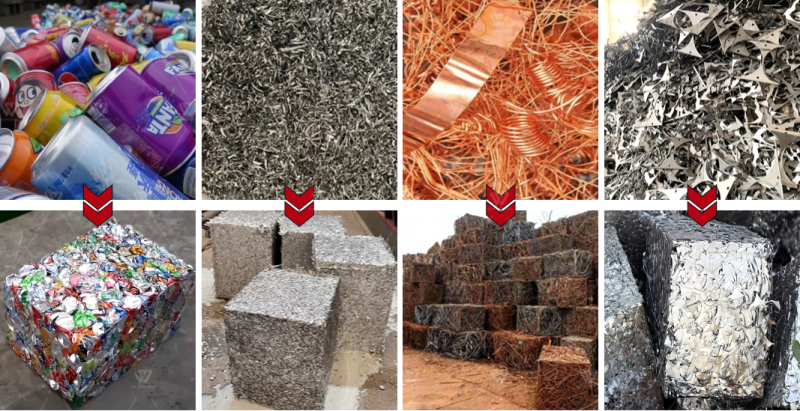

WS-W series metal chip cake press is used to cold press a variety of metal scrap powders or granules, such as steel, cast iron chips, copper chips, aluminum chips, crushed materials, sponge iron, steel chips, iron ore powder, silicon powder, slag powder and other non-ferrous metals into 30~180kg cylindrical cakes without any additives. It is suitable for enterprises with large amounts of metal chips, large foundries, wind power component foundries, copper and aluminum product manufacturers, etc. for efficient processing. It is equipped with storage bins and conveyors.
.png)

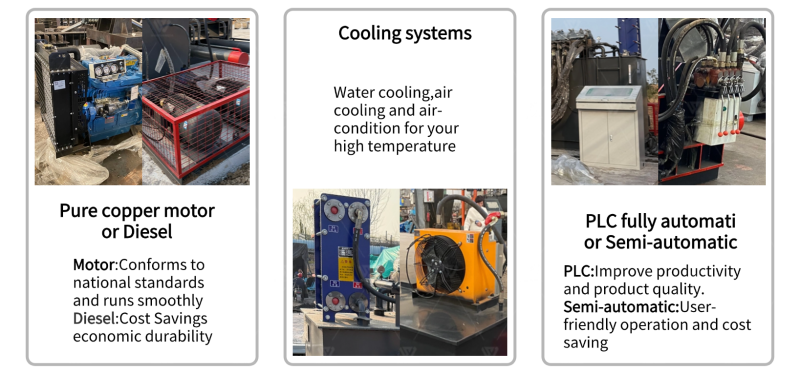

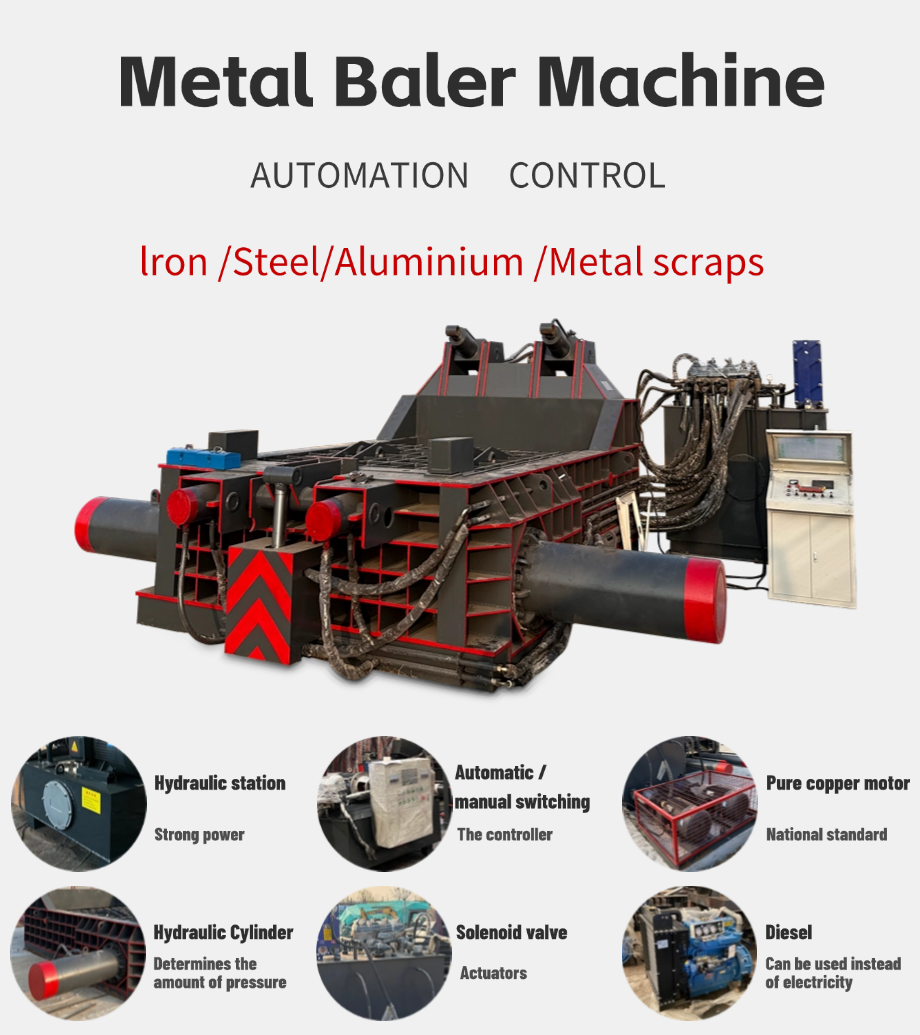

The overall structure of scrap metal pressing baler consists of mechanical system, electrical system, hydraulic system and so on. The extruding force is selectable from 1000KN to 4000KN in total 10 levels. It adopts rotating cover structure with large opening area of material box, which is especially suitable for feeding large, empty and thin materials; it can be fed manually or mechanically. Stable operation and easy to maintain.
.png)
| Model |
WS-W630 |
WS-W800 |
WS-W1000 |
WS-W1250 |
| Nominal force (KN) |
6300 |
8000 |
10000 |
12500 |
| Block size (mm) |
Φ180-200x(140-180) |
Φ200-240x(160-200) |
Φ220-260x(180-220) |
Φ240-300x(200-260) |
| Block density (kg/m3) |
≥5200 |
≥5500 |
≥5500 |
≥5500 |
| Working pressure (MPa) |
20-25 |
20-25 |
20-25 |
20-25 |
| Productivity (t/h) |
2.5-4 |
5-7 |
7-9 |
12-15 |
| Total power (KW) |
30x2 |
45x3 |
55x3 |
75x3 |
| Equipment operation mode |
PLC fully automatic |
PLC fully automatic |
PLC fully automatic |
PLC fully automatic |
| Note: The above output and density are based on iron chips. The parameters are subject to technical changes. The productivity depends on the raw materials and the diameter and height of the briquette. |
.png)
The horizontal metal chip cake press is mainly used in factories with large amounts of metal waste processing. This machine adopts a horizontal structure, has low requirements for the height of the workshop building, and can also solve the problem of various difficulties in unloading metal chips.
